STRUCTURAL STEEL DETAILING

Structural Steel Detailing
Connection Design & Statics
Direct CNC & Fabrication Data
Material Take-Offs & BOM

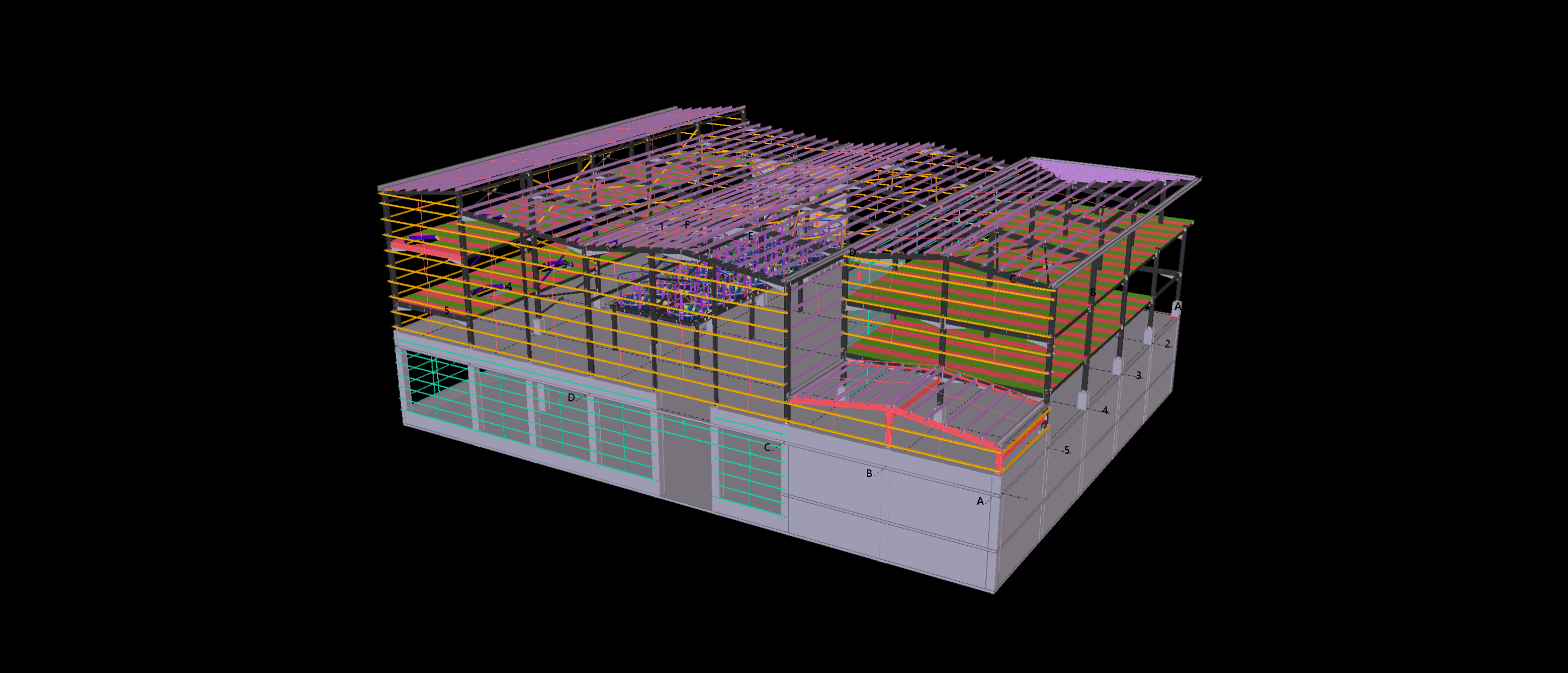

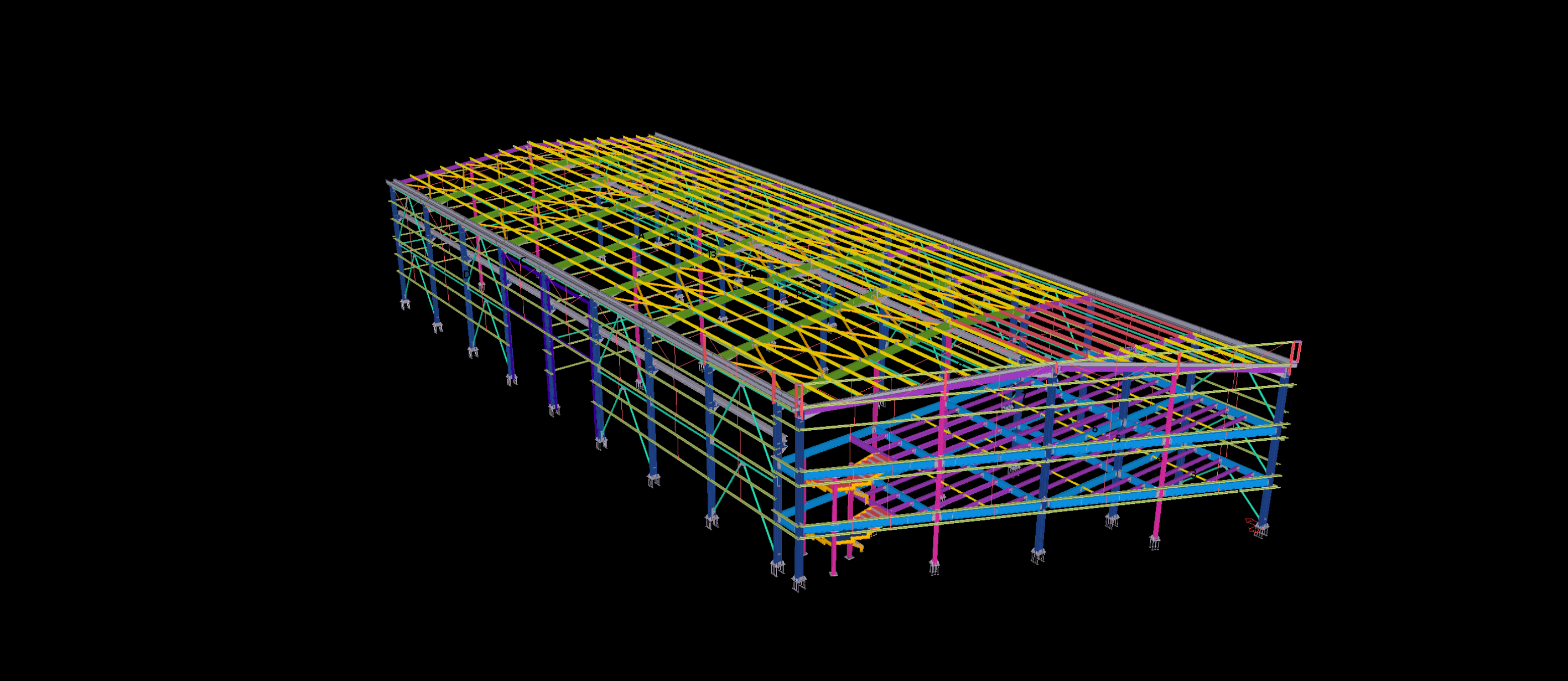

We bridge the critical gap between structural engineering calculations and workshop execution. Utilizing Tekla Structures as our core detailing environment, we develop millimeter-precise 3D models up to LOD 400, transforming complex industrial and architectural designs into error-free fabrication packages. Every structural element—from primary heavy framing to complex gusset geometries—is meticulously detailed to prevent on-site rework and accelerate factory throughput.

  • LOD 400 Fabrication Modeling: Full digital twin modeling containing every profile, stiffener plate, shear tab, bolt assembly, and weld preparation.

  • Workshop & Assembly Drawing Sets: Clear, uncluttered single-part and assembly shop drawings configured specifically for fabricators to optimize fit-up speed.

  • General Arrangement (GA) Plans: Comprehensive anchor bolt setting plans, framing elevations, and 3D erection diagrams designed for safe crane sequencing.

  • Tonnage Reports & Bill of Materials (BOM): Automated, verified material take-offs generated directly from the model to eliminate material waste and streamline procurement.

Get Quotation
