DIRECT CNC & FABRICATION DATA

Structural Steel Detailing
Connection Design & Statics
Direct CNC & Fabrication Data
Material Take-Offs & BOM

We speak your workshop’s digital language. Our detailers understand that modern steel fabrication relies on seamless software-to-machine integration. We extract verified, direct-to-machine numerical data from our Tekla models, allowing your automated drilling, sawing, and plasma lines to begin production immediately without manual data entry or programming errors.

  • DSTV / NC1 Files: 100% accurate numerical control data configured for automated beam drill lines and coping machines.

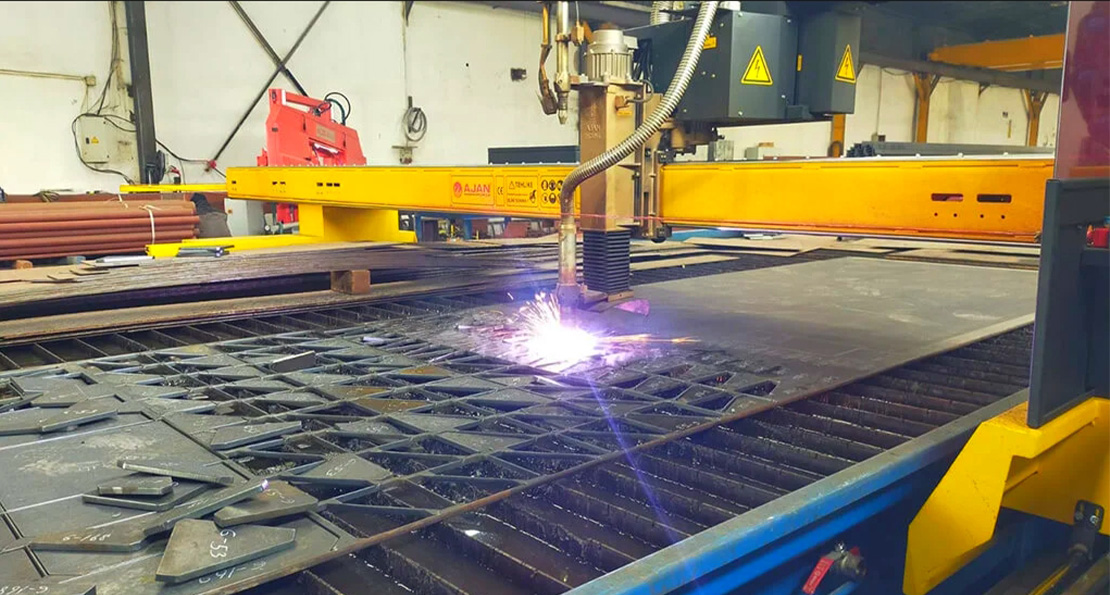

  • DXF Plate Profiles: 1:1 scale contour files precisely prepared for laser, plasma, and waterjet cutting tables.

  • Automated Marking & Scribing: Hard stamping data, contour marking, and weld scribe lines embedded directly into the CNC files to accelerate fit-up and assembly.

  • ERP/MIS Integration: Direct material take-offs and production data exports ready for management software like Tekla EPM or StruM.I.S, ensuring full traceability.
